PIPELINE CLEANING DEVICE

---

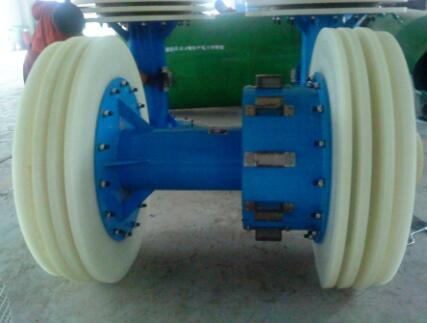

straight type pipe pig

operation index

the scope of pipe dia.: 8"-48"

the shrink rage of sealing cup is about 3%-5% of the pipe inner diameter;

through the pipe elbows curvature ≥1.5D;

deformation of straight length ≤20%;

working speed ≤15m/s;

working pressure≤35MPa;

the Max. distance of one time is about 1000Km.

---

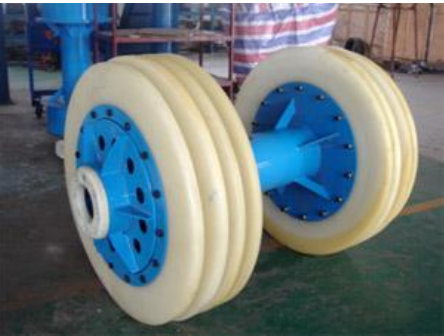

bowl type pipe pig

operation index

the scope of pipe dia.: 8"-48"

the shrink rage of sealing cup is about 3%-5% of the pipe inner diameter;

through the pipe elbows curvature ≥1.5D;

deformation of straight length ≤20%;

working speed ≤15m/s;

working pressure≤35MPa;

the Max. distance of one time is about 1000Km.

---

caliper pipe pig

operation index

the shrink rage of sealing cup is about 3%-5% of the pipe inner diameter;

through the pipe elbows curvature ≥1.5D;

deformation of straight length ≤20%;

working speed ≤15m/s;

working pressure≤35MPa;

the Max. distance of one time is about 1000Km.

---

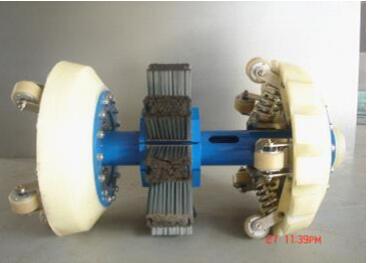

brush type pipe pig

operation index

the shrink rage of sealing cup is about 3%-5% of the pipe inner diameter;

through the pipe elbows curvature ≥1.5D;

deformation of straight length ≤20%;

working speed ≤15m/s;

working pressure≤35MPa;

the Max. distance of one time is about 1000Km.

---

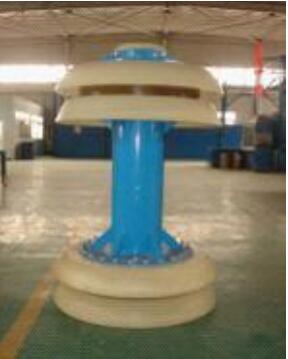

jet type pipe pig

operation index

pipeline media: air

through deformation of deformed straight length ≤18%;

through 90°elbow curvature radius ≥2DN；

through deformation of deformed 90° elbow ≤15%;

through the angle of miter pipe (slat connected pipe) ≤15°；

working temperature in the pipe: -20℃-70℃；

the Max. distance of one time is about 1000Km.

---

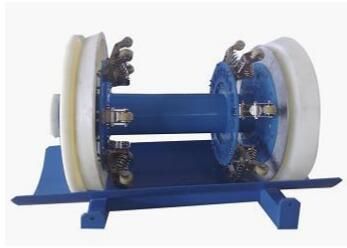

magnatic pipe pig

operation index

the shrink rage of sealing cup is about 3%-5% of the pipe inner diameter;

through the pipe elbows curvature ≥1.5D;

deformation of straight length ≤20%;

working speed ≤15m/s;

working pressure≤35MPa;

the Max. distance of one time is about 1000Km.

---

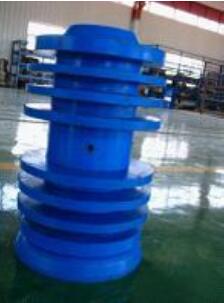

integral casting

operation index

the shrink rage of sealing cup is about 3%-5% of the pipe inner diameter;

through the pipe elbows curvature ≥1.5D;

deformation of straight length ≤20%;

working speed ≤15m/s;

working pressure≤35MPa;

the Max. distance of one time is about 1000Km;

by the crude media ≥1000Km.

---

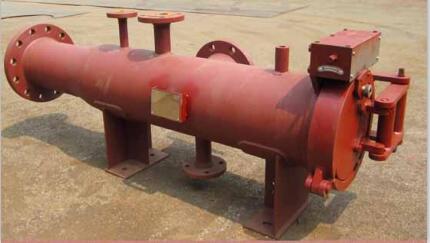

the pig trap device

operation index

design pressure：DN1.6-9.99MPa

design temperature 40℃;

testing pressure: 1.5 times design water gage；

nominal diameter: DN100-DN1400;

corrosion allowance:2mm;

earthquake intensity: 7 degree;

useage media: gas

service life: 30 Years
