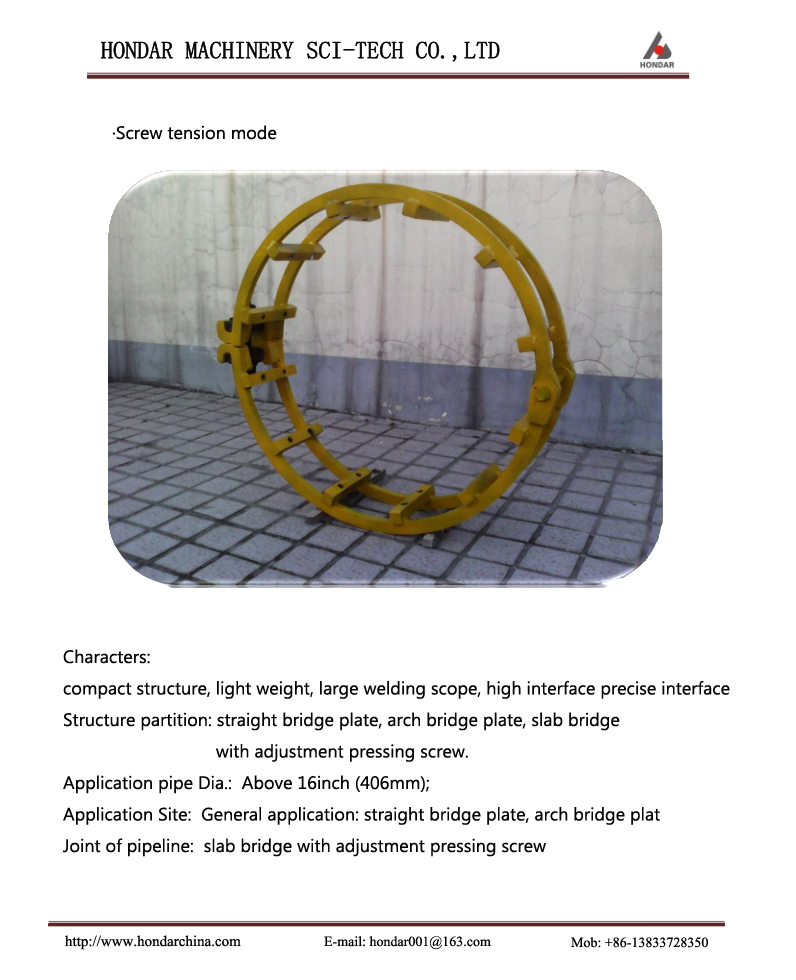

Screw tension mode

Characters: compact structure, light weight, large welding scope, high interface   precise interface

Structure partition: straight bridge plate, arch bridge plate, slab bridge with                               adjustment pressing screw.

Application pipe Dia.:  Above 16inch (406mm);

Application Site: General application: straight bridge plate, arch bridge plate

Joint of pipeline: slab bridge with adjustment pressing screw

SCREW TENSION MODE

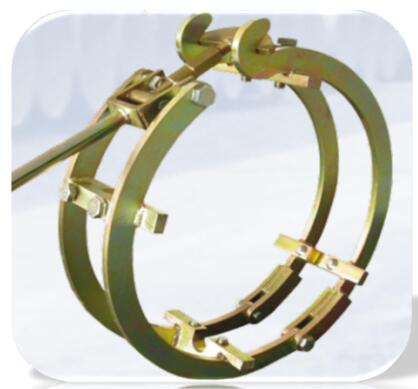

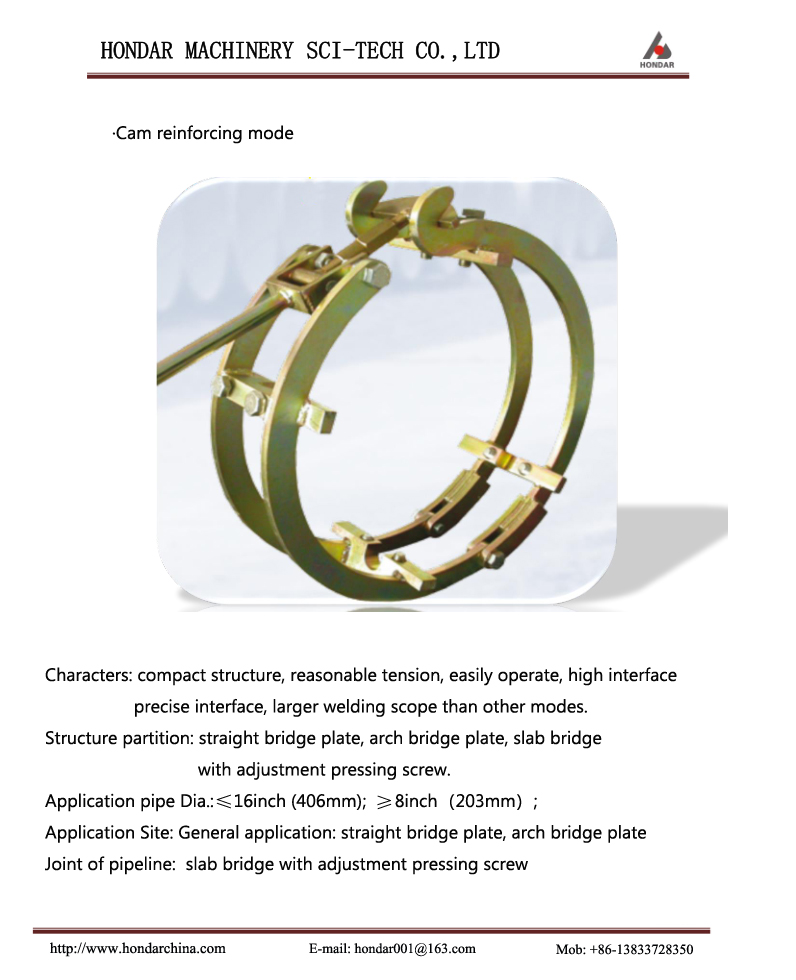

Cam reinforcing mode

Characters: compact structure, reasonable tension, easily operate, high interface                          precise interface, larger welding scope than other modes.

Structure partition: straight bridge plate, arch bridge plate, slab bridge with                                 adjustment pressing screw.

Application pipe Dia.: ≤16inch (406mm), ≥8inch（203mm）;

Application Site: General application: straight bridge plate, arch bridge plate

Joint of pipeline: slab bridge with adjustment pressing screw

CAM REINFORCING MODE

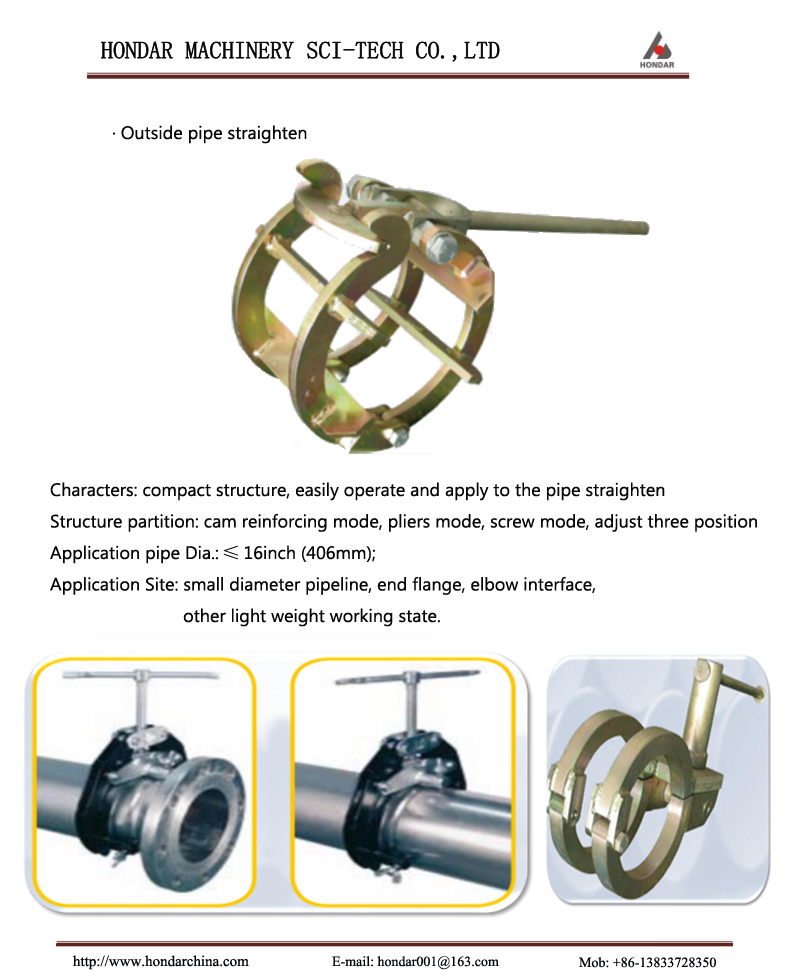

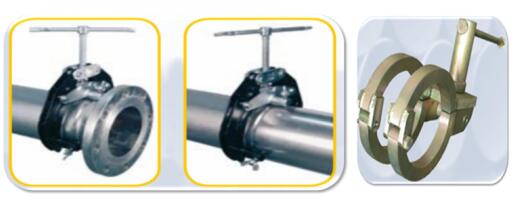

Outside pipe straighten

Characters: compact structure, easily operate and apply to the pipe straighten

Structure partition: cam reinforcing mode, pliers mode, screw mode, adjust three                                     position

Application pipe Dia.: ≤16inch (406mm);

OUTSIDE PIPE STRAIGHTEN
